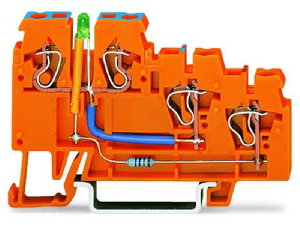

3-conductor sensor supply terminal block; LED (green); 2.5 mm²; CAGE CLAMP®; 2,50 mm²; orange

Voltage type 1: DC;
Tesiune nominala: 24;
VTehnologie conexiune: CAGE CLAMP;
Tip actionare: Operating tool;
Connectable conductor materials: Copper;
Solid conductor: 0.08 2.5 mm / 28 12 AWG;
Fine-stranded conductor: 0.08 2.5 mm / 28 12 AWG;
Strip length: 6 7 mm / 0.24 0.28 inch;
Numar total de conexiuni: 4;
Total number of potentials: 3;
Numar nivele: 3;
Wiring type: Front-entry wiring;
Note (conductor cross-section): 12 AWG: THHN, THWN;
Latime: 5 mm / 0.197 inch;
Inaltime from upper-edge of DIN-rail: 39 mm / 1.535 inch;
Adancime: 68 mm / 2.677 inch;
Design: horizontal;
Tip montaj: DIN-35 rail;
Marking level: Side marking;
Culoare: orange;
Fire load: 0,179;
MJGreutate: 9,7;
gProduct Group: 1 (Rail Mounted Terminal Blocks);
Tip ambalare: BOX;
Tara de origine: CN;
GTIN: 4045454365646;
Customs tariff number: 85369010000;
