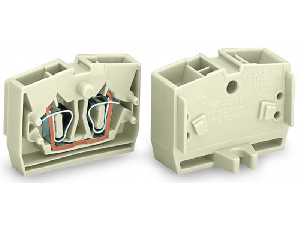

4-conductor end terminal block; suitable for Ex e II applications; without push-buttons; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm �; 2.5 mm�; CAGE CLAMP�; 2,50 mm�; light gray

Tensiune nominala EN (Ex e II): 690;
VCurent nominal (Ex e II): 23;
ATehnologie conexiune: CAGE CLAMP;
Tip actionare: Operating tool;
Connectable conductor materials: Copper;
Solid conductor: 0,08 2,5 mm / 28 12 AWG;
Fine-stranded conductor: 0,08 2,5 mm / 28 12 AWG;
Strip length: 8 9 mm / 0.31 0.35 inch;
Numar total de conexiuni: 4;
Total number of potentials: 1;
Numar nivele: 1;
Wiring type: Front-entry wiring;
Note (conductor cross-section): 12 AWG: THHN, THWN;
Latime: 10 mm / 0.394 inch;
Inaltime de la fata: 22.1 mm / 0.87 inch;
Adancime: 32 mm / 1.26 inch;
Design: horizontal;
Tip montaj: Mounting flange;
Marking level: Center marking;
Culoare: light gray;
Fire load: 0,102;
MJGreutate: 6,4;
gProduct Group: 9 (Std.
Chassis Mt.
Blocks);
Tip ambalare: BOX;
Tara de origine: CH;
GTIN: 4044918414517;
Customs tariff number: 85369010000;
