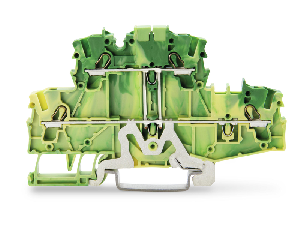

Double-deck terminal block; 4-conductor ground terminal block; PE; without marker carrier; suitable for Ex e II applications; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm�; Push-in CAGE CLAMP�; 2,50 mm�; green-yellow

Double-deck terminal block; 4-conductor ground terminal block; PE; without marker carrier; suitable for Ex e II applications; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm�; Push-in CAGE CLAMP�; 2,50 mm�; green-yellow
Pret: 25.91 Ron

De la Netvolt Srl (BUCURESTI)
Telefon:, 0213442238

Categorie: Tablouri electrice
Descriere Double-deck terminal block; 4-conductor ground terminal block; PE; without marker carrier; suitable for Ex e II applications; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm�; Push-in CAGE CLAMP�; 2,50 mm�; green-yellow

Ratings per: IEC/EN 60947-7-2;
Legend (ratings): (III / 3) ?? Overvoltage category III / Pollution degree 3;
Tehnologie conexiune: Push-in CAGE CLAMP;
Tip actionare: Push-in;
Open Tool Slot;
Connectable conductor materials: Copper;
Nominal cross-section: 2.5 mm;
Solid conductor: 0.25 4 mm / 22 12 AWG;
Solid conductor;
push-in termination: 0.75 4 mm / 18 12 AWG;
Fine-stranded conductor: 0.25 4 mm / 22 12 AWG;
Fine-stranded conductor;
with insulated ferrule: 1 2.5 mm / 18 12 AWG;
Fine-stranded conductor;
with ferrule;
push-in termination: 1 2.5 mm / 18 12 AWG;
Strip length: 10 12 mm / 0.39 0.47 inch;
Numar total de conexiuni: 4;
Total number of potentials: 1;
Numar nivele: 2;
Wiring type: Front-entry wiring;
Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.;
Latime: 5.2 mm / 0.205 inch;
Inaltime from upper-edge of DIN-rail: 51.7 mm / 2.035 inch;
Adancime: 92.5 mm / 3.642 inch;
Design: horizontal;
Tip montaj: DIN-35 rail;
Potential marking: PE;
Marking level: Center/side marking;
Culoare: green-yellow;
Material izolator: Polyamide 66 (PA 66);
Greutate: 16,5;
gTip ambalare: BOX;
Tara de origine: DE;
GTIN: 4055143622592;
Customs tariff number: 85369010000;

Comanda produs Double-deck terminal block; 4-conductor ground terminal block; PE; without marker carrier; suitable for Ex e II applications; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm�; Push-in CAGE CLAMP�; 2,50 mm�; green-yellow
