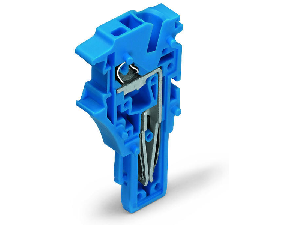

End module for 1-conductor female connector; 2.5 mm²; 1-pole; 2,50 mm²; blue

Ratings per: IEC/EN 61984;
Tesiune nominala (III/3): 690;
VTensiune nominala de supratensiune (III/3): 6;
kVCurent nominal: 24;
ACurent nominal 2: 32;
ALegend (ratings): (III / 3) ?? Overvoltage category III / Pollution degree 3;
Tehnologie conexiune: Push-in CAGE CLAMP;
Tip actionare: Open Tool Slot;
Push-in;
Connectable conductor materials: Copper;
Nominal cross-section: 2,5 mm;
Solid conductor: 0,25 4 mm / 22 12 AWG;
Solid conductor;
push-in termination: 0,75 4 mm / 18 12 AWG;
Fine-stranded conductor: 0,25 4 mm / 22 12 AWG;
Fine-stranded conductor;
with insulated ferrule: 1 2,5 mm / 18 12 AWG;
Fine-stranded conductor;
with ferrule;
push-in termination: 1 2,5 mm / 18 12 AWG;
Strip length: 10 12 mm / 0.39 0.47 inch;
Numar poli: 1;
Numar total de conexiuni: 1;
Total number of potentials: 1;
Wiring type: Front-entry wiring;
Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.;
Latime: 5,2 mm / 0.205 inch;
Inaltime: 40,5 mm / 1.594 inch;
Adancime: 22,4 mm / 0.882 inch;
Marking level: Side marking;
Tip contact (pluggable connector): Conector mama/priza;
Connector (connection type): for conductor;
Culoare: blue;
Material izolator: Polyamide 66 (PA 66);
Fire load: 0,053;
MJGreutate: 3,2;
gProduct Group: 18 (X-COM-System);
Tip ambalare: BOX;
Tara de origine: CN;
GTIN: 4050821243427;
Customs tariff number: 85366990990;
