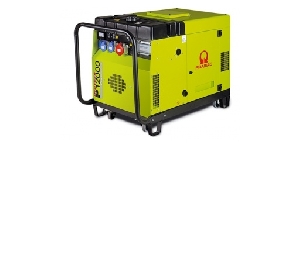

Generator monofazat Pramac P12000 insonorizat

Cod producator: PF103SHB000
Generator monofazat, benzina, pornire electrica Pramac P12000
Main specifications
Compliancy certification CE
Standby power LTP 12,5 kW
Rated prime power (PRP) 11 kVA
Rated continuous power (COP) 10 kVA
Phases 1
Voltage 230 V
Frequency 50 Hz
Battery charger current n.a.
Single-phase maximum power (LTP) n.a.
Single-phase prime power (PRP) n.a.
Single-phase continuous power (COP) n.a.
Rated maximum power (LTP) 11,88 kVA
Rated current at COP 43,5 A
Rated power factor 0,9 PF
Battery charger voltage n.a.
Panel location Canopied
Frame type Canopied
Caracterisitici tehnice
Dimensional data
Length 930 mm
Width 555 mm
Height 800 mm
Dry weight 166 kg
Additional information
Fuel tank location On canopy
Fuel tank capacity 24 l
Noise level at 7 m 69,9 dBA
Guaranteed noise level (LWA) 96 dBA
Skid mounting Yes
Automatic supplementary tank VV.FF.
No
Running time at 75% COP 6,86 h
Measured acoustic power (LWA) at 4 mt 94,9 dBA
Operating conditions
-15 ~ +40 °
C
Scale specifications
Electric protection grade IP 23
Electric equipments
Hourmeter No
Engine specifications
Engine manufacturer Honda
Model GX620
Stroke 4
Fuel Gasoline
Number of cylinders and disposition 2, V-form
Displacement 614 cm³

Air intake Natural
Starting system Electric
Nominal operating speed 3000 rpm
Speed governor Mechanical
Continuous power COP 10,3 kW
Prime power PRP 11,3 kW
Lube oil capacity 1,8 l
