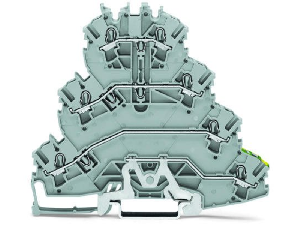

Quadruple-deck rail-mounted terminal block; Rail-mounted terminal block for electric motor wiring; L1 - L2 - L3 - PE; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Ratings per: IEC/EN 60947-7-1;
Tesiune nominala (III/3): 800;
VTensiune nominala de supratensiune (III/3): 8;
kVCurent nominal: 20;
ACurent nominal 2: 25;
ALegend (ratings): (III / 3) ?? Overvoltage category III / Pollution degree 3;
Tensiune nominala CSA (Use Group B): 600;
VCurent nominal CSA (Use Group B): 20;
ATensiune nominala CSA (Use Group C): 600;
VCurent nominal CSA (Use Group C): 20;
ATehnologie conexiune: Push-in CAGE CLAMP;
Number of connection points (connection type): 2;
Tip actionare: Push-in;
Open Tool Slot;
Connectable conductor materials: Copper;
Nominal cross-section: 2,5 mm;
Solid conductor: 0,25 4 mm / 22 12 AWG;
Solid conductor;
push-in termination: 0,75 4 mm / 18 12 AWG;
Fine-stranded conductor: 0,25 4 mm / 22 12 AWG;
Fine-stranded conductor;
with insulated ferrule: 1 2,5 mm / 18 12 AWG;
Fine-stranded conductor;
with ferrule;
push-in termination: 1 2,5 mm / 18 12 AWG;
Strip length: 10 12 mm / 0.39 0.47 inch;
Number of connection points: 2;
Number of connection points: 2;
Number of connection points: 1;
Numar total de conexiuni: 7;
Total number of potentials: 4;
Numar nivele: 4;
Wiring type: Front-entry wiring;
Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.;
Latime: 5,2 mm / 0.205 inch;
Inaltime from upper-edge of DIN-rail: 96,8 mm / 3.811 inch;
Adancime: 103,5 mm / 4.075 inch;
Tip montaj: DIN-35 rail;
Potential marking: L1
- L2
- L3
- PE;
Culoare: gray;
Material izolator: Polyamide 66 (PA 66);
Fire load: 0,43;
MJGreutate: 26;
gProduct Group: 22 (TOPJOB S);
Tip ambalare: BOX;
Tara de origine: CN;
GTIN: 4050821579441;
Customs tariff number: 85369010000;
